The Role of Expansion Joint Waterproofing in Preventing Structural Damage

Walk through any commercial building in Toronto’s downtown core, and you’ll likely pass over expansion joints without giving them a second thought. These seemingly minor features, often appearing as thin lines running across floors, walls, or building exteriors, play a crucial role in the structural integrity of every significant structure across the Greater Toronto Area. Yet despite their importance, expansion joints remain one of the most overlooked and under-maintained elements in commercial buildings.

For property owners and facility managers throughout the GTA, understanding expansion joint waterproofing isn’t just an academic exercise. It’s a critical component of protecting substantial real estate investments from water infiltration, structural deterioration, and the cascading problems that follow when these vulnerable points fail. In Toronto’s demanding climate, where buildings endure extreme temperature swings, freeze-thaw cycles, and significant precipitation, properly waterproofed expansion joints stand as the first line of defense against costly structural damage.

The consequences of neglected expansion joint waterproofing manifest slowly but devastatingly. Water infiltration leads to concrete spalling, steel reinforcement corrosion, interior water damage, and compromised structural performance. What begins as a small leak at an expansion joint can escalate into six-figure repair projects affecting multiple building systems. For commercial waterproofing applications across Toronto and the GTA, expansion joints demand specialized attention and proven solutions.

Understanding Expansion Joints: Function and Vulnerability

Before addressing waterproofing solutions, it’s essential to understand why expansion joints exist and why they present such significant waterproofing challenges. Buildings are not monolithic structures; they’re composed of materials that respond dynamically to environmental conditions, structural loads, and time itself.

Expansion joints are intentional separations built into structures to accommodate movement. This movement comes from multiple sources. Thermal expansion and contraction occur as building materials respond to temperature changes. In Toronto’s climate, where a concrete plaza might experience surface temperatures ranging from -30°C on a January night to over 40°C under summer sun, the dimensional changes are substantial. Concrete expands approximately 10 millimeters per 30 meters of length for every 50-degree temperature change.

Beyond thermal movement, buildings experience structural deflection under load, settlement as foundations adjust to soil conditions, seismic activity, and even wind-induced sway in tall structures. Expansion joints provide controlled locations for this movement to occur, preventing the random cracking that would otherwise develop throughout the structure.

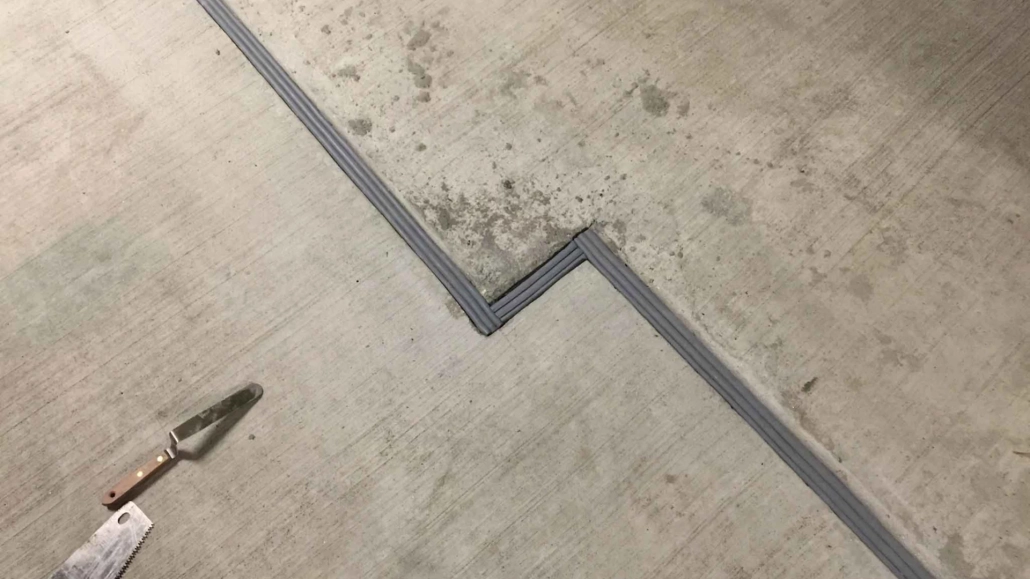

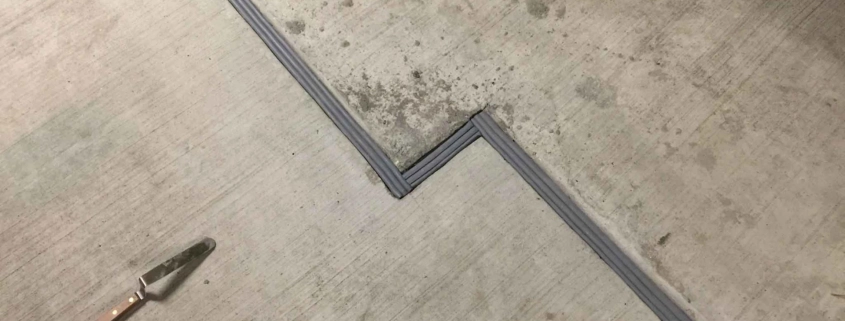

These joints appear in various locations throughout commercial buildings. Horizontal expansion joints run across parking garage decks, plaza levels, and roof surfaces. Vertical joints separate building sections, accommodate height differentials between adjacent structures, or allow for phased construction. Interior expansion joints cross through lobbies, corridors, and occupied spaces. Each location presents unique waterproofing requirements and performance demands.

The vulnerability of expansion joints stems from their fundamental nature. By design, they’re gaps in otherwise continuous surfaces, creating natural pathways for water infiltration. The joint must remain flexible to accommodate movement while simultaneously providing a watertight seal. This dual requirement makes expansion joint waterproofing one of the most technically demanding aspects of commercial waterproofing.

Traditional construction materials excel at either rigidity or flexibility, but rarely both. Concrete provides excellent structural support but cracks under movement. Rubber seals offer flexibility but can deteriorate, tear, or lose adhesion. Expansion joint waterproofing systems must bridge this gap, literally and figuratively, providing durability, flexibility, and reliable waterproofing across the full range of building movements.

Climate Impacts on Toronto Expansion Joints

Toronto’s position on the northern shore of Lake Ontario creates a climate that’s particularly challenging for building expansion joints. Understanding these local environmental factors helps explain why expansion joint waterproofing requires specialized attention in GTA commercial buildings.

Freeze-Thaw Cycling and Ice Formation

Toronto experiences approximately 50 to 70 freeze-thaw cycles annually, among the highest rates in Canada. When water penetrates an expansion joint and freezes, it expands with tremendous force—enough to spall concrete, tear waterproofing membranes, and push apart joint assemblies. This freeze-thaw action accelerates deterioration exponentially compared to climates with consistent temperatures.

The damage mechanism is insidious. Small amounts of water enter through minor imperfections in the waterproofing system. As temperatures drop, this water freezes and expands, creating larger openings. More water enters during the next precipitation event, and the cycle repeats. Within a few seasons, a minor seal defect becomes a significant breach requiring extensive repairs.

Parking structures face particularly severe freeze-thaw impacts. Road salt tracked onto vehicles introduces chlorides that accelerate concrete deterioration and steel corrosion. When salt-laden water penetrates expansion joints, it attacks the reinforcing steel, causing rust expansion that further damages surrounding concrete. Toronto contractors regularly encounter parking structures where neglected expansion joints have led to structural repairs costing hundreds of thousands of dollars.

Temperature Extremes and Thermal Cycling

The GTA’s temperature range taxes expansion joint systems from both extremes. Summer heat causes maximum expansion, placing tension on joint seals and waterproofing membranes. Winter cold contracts materials, opening gaps where water can infiltrate. This constant cycling fatigues materials, causing failures that might not occur in more moderate climates.

Different building materials expand and contract at different rates, a phenomenon called differential movement. A metal-clad commercial building responds to temperature changes differently than the concrete structure beneath. Expansion joints must accommodate not just absolute movement but also these differential rates. Toronto’s rapid temperature swings—a 30-degree shift within 24 hours isn’t uncommon during shoulder seasons—place particular stress on expansion joint systems.

Precipitation Patterns and Water Exposure

Toronto receives approximately 830 millimeters of precipitation annually, distributed relatively evenly throughout the year. This consistent moisture exposure means expansion joints rarely have extended dry periods for recovery. Spring snowmelt and summer storms create periods of intense water exposure, while winter precipitation leaves standing water that can freeze in joints.

The city’s urban heat island effect creates localized microclimates where precipitation behaves differently. Downtown Toronto can experience rain while surrounding areas see snow, or vice versa. This variability means expansion joint waterproofing systems must perform reliably across diverse precipitation types and intensities.

Wind-Driven Rain and Weather Exposure

Tall commercial buildings throughout Toronto face significant wind-driven rain, particularly from prevailing westerly winds off Lake Ontario. Water driven horizontally can penetrate expansion joints that would remain watertight under vertical rain alone. High-rise construction in areas like the Financial District, Yonge and Eglinton, and Vaughan Metropolitan Centre experience some of the most demanding exposure conditions in the GTA.

Common Failure Modes and Structural Consequences

Understanding how expansion joint waterproofing fails helps property owners recognize early warning signs and appreciate the importance of preventive maintenance. Across commercial buildings throughout Toronto and the GTA, several failure patterns appear repeatedly.

Adhesive Failure and Seal Separation

The most common expansion joint failure involves loss of adhesion between the waterproofing system and the substrate. Sealants pull away from concrete surfaces, membranes delaminate, and gaps open where water can enter. Adhesive failure often results from inadequate surface preparation, incompatible materials, or movement exceeding the system’s designed capacity.

In Toronto’s climate, UV exposure accelerates deterioration of exposed joint sealants. Surfaces facing south or west receive intense sun exposure that degrades polyurethane and silicone sealants. What begins as minor surface crazing progresses to complete seal failure within years if not addressed.

Material Fatigue and Tearing

Continuous expansion and contraction cycles fatigue waterproofing materials. Rubber expansion joint covers develop tears at stress points. Membrane systems crack along fold lines. Sealants lose elasticity and can no longer stretch to accommodate movement. These fatigue failures typically appear after years of service, making them predictable maintenance items rather than unexpected problems.

Commercial buildings with high-traffic expansion joints, such as those in parking garage ramps or plaza surfaces, experience accelerated wear. Tires, shopping carts, and snow removal equipment mechanically stress joint covers, leading to premature failure even when the underlying waterproofing remains intact.

Substrate Deterioration

Water infiltration through failed expansion joints attacks the concrete and steel at the joint edges. Concrete spalling often begins at expansion joints because the movement has already created microcracks that allow water and chloride penetration. Once reinforcing steel begins to corrode, the rust expansion creates additional concrete damage, widening the joint and accelerating water infiltration.

Toronto contractors frequently encounter expansion joints where the concrete has deteriorated to the point that repairing the waterproofing alone is insufficient. Complete joint reconstruction becomes necessary, involving concrete removal, steel reinforcement repair or replacement, and installation of new joint assemblies—a far more expensive undertaking than preventive waterproofing maintenance.

Cascading Damage to Building Systems

Water entering through expansion joints rarely stays confined to the joint itself. It migrates through building assemblies, damaging finishes, compromising insulation, corroding mechanical systems, and creating conditions conducive to mold growth. In multi-story buildings, water from upper-level expansion joints can travel through the structure, appearing as leaks far from the actual entry point.

The financial impact extends beyond direct repair costs. Water damage in commercial buildings means tenant disruptions, potential liability for damaged inventory or equipment, increased insurance premiums, and reduced property values. Occupied spaces below parking structures or plazas with failed expansion joints may require evacuation during repairs, creating revenue loss and tenant relations challenges.

Structural Integrity Concerns

While most expansion joint failures begin as waterproofing problems, prolonged neglect can compromise structural integrity. Corroded reinforcing steel loses load-carrying capacity. Concrete deterioration reduces structural section thickness. In extreme cases, buildings may require emergency shoring while extensive repairs proceed.

Toronto’s building standards and regulations require maintaining structural safety. Property owners facing significant expansion joint deterioration may receive orders from the city requiring immediate corrective action. These mandated repairs often occur on compressed timelines with associated premium costs.

Professional Expansion Joint Waterproofing Solutions

Effective expansion joint waterproofing requires selecting appropriate systems for specific applications and ensuring proper installation. Commercial waterproofing contractors across the GTA utilize various technologies, each offering distinct advantages for particular building types and exposure conditions.

Preformed Expansion Joint Systems

Manufactured expansion joint assemblies provide engineered solutions for demanding applications. These systems feature metal or rigid polymer frames with flexible rubber or neoprene seals designed to accommodate specific ranges of movement. High-quality preformed systems can handle expansion and contraction of 50 millimeters or more while maintaining watertight integrity.

Toronto’s parking structures and commercial plazas frequently employ preformed systems because of their durability and proven performance. These systems resist traffic loads, snow removal equipment impact, and the demanding exposure conditions typical of exterior applications. While more expensive than field-applied sealants, their longevity and reliability often make them cost-effective over the building’s service life.

Membrane-Based Systems

Waterproofing membranes specifically designed for expansion joints offer flexibility and reliable performance. These systems typically involve installing a flexible membrane that spans the joint, bonded to both sides and folded to accommodate movement. Materials include modified bitumen, EPDM rubber, and advanced polymer membranes.

For interior expansion joints and areas not subject to traffic, membrane systems provide excellent protection at moderate cost. They’re particularly effective in applications like building envelopes, where the expansion joint isn’t exposed to mechanical wear but must accommodate significant movement and provide reliable weather protection.

Advanced Sealant Technologies

Modern joint sealants have evolved far beyond basic caulking compounds. Polyurethane, silicone, and hybrid polymer sealants offer exceptional elasticity, adhesion, and durability. Properly specified and installed sealants can accommodate joint movements of 25-50% of the joint width while maintaining watertight seals.

Sealant selection must account for specific application conditions. Exterior joints exposed to UV require sealants with superior weather resistance. Joints subject to immersion demand hydrophobic formulations. Traffic-bearing joints need harder formulations that resist mechanical damage while retaining flexibility.

Hybrid and Composite Solutions

Complex applications often benefit from combining multiple waterproofing technologies. A parking garage expansion joint might incorporate a preformed load-bearing cover, an underlying membrane system for primary waterproofing, and sealant backup systems at critical transitions. This defense-in-depth approach ensures that if one component degrades, backup systems maintain protection until maintenance can be performed.

Installation Critical Success Factors

Regardless of the waterproofing system selected, proper installation determines performance and longevity. Toronto contractors with extensive commercial waterproofing experience understand the critical success factors that separate reliable installations from future failures.

Surface preparation proves crucial. Substrates must be clean, dry, and sound. Concrete surfaces often require diamond grinding to remove laitance and create a profile for adhesion. Existing failed systems must be completely removed—attempting to waterproof over deteriorated materials invites failure.

Joint sizing and configuration affect system selection and performance. Joints must be properly sized for anticipated movement. Too narrow, and the waterproofing system can’t accommodate expansion. Too wide, and materials may not bridge the gap reliably. Experienced contractors evaluate existing joint dimensions, assess movement patterns, and recommend remedial measures when joints don’t meet system requirements.

Environmental conditions during installation impact curing and bonding. Most waterproofing materials have temperature and humidity requirements for proper installation. Toronto’s weather variability means contractors must carefully time expansion joint projects or provide environmental controls to ensure optimal conditions.

Quality control and inspection during installation catch defects before they become problems. Since expansion joints are particularly vulnerable, thorough inspection of each installation stage—substrate preparation, primer application, membrane or sealant installation, and transition detailing—ensures reliable performance.

Maintenance and Lifecycle Management

Expansion joint waterproofing isn’t a one-time installation; it requires ongoing maintenance and periodic renewal. Property owners across the Greater Toronto Area can significantly extend system life and avoid expensive failures through proactive maintenance programs.

Regular inspections catch problems early when repairs remain simple and inexpensive. Commercial buildings should undergo expansion joint surveys at least annually, with detailed inspections following severe weather events or in advance of seasonal transitions. Spring inspections, after winter’s harsh conditions, often reveal damage that can be addressed before summer’s thermal expansion places additional stress on compromised systems.

Inspection should document joint condition through photographs and notes, creating historical records that reveal deterioration patterns. Early signs of problems include seal separation, surface crazing, material hardening, minor tears, or concrete cracking adjacent to joints. Addressing these conditions immediately prevents water infiltration and the cascading damage that follows.

Cleaning and minor maintenance extend system life. Removing debris from expansion joints, cleaning surfaces, and reapplying protective coatings are inexpensive interventions that prevent premature deterioration. Parking structures benefit from periodic joint cleaning to remove salt, dirt, and debris that accelerate degradation.

Planned replacement based on expected service life proves more cost-effective than reactive repairs. Most expansion joint waterproofing systems have predictable lifespans ranging from 10 to 25 years depending on material type, exposure conditions, and maintenance quality. Budgeting for systematic replacement allows property owners to address joints before failures occur, avoiding the emergency repair premiums and collateral damage costs associated with unexpected failures.

Protecting Your GTA Commercial Property Investment

The expansion joints in your commercial building may seem like minor details, but they play a crucial role in protecting your property from structural damage and costly repairs. Throughout Toronto and the Greater Toronto Area, commercial buildings depend on properly waterproofed expansion joints to maintain structural integrity, prevent water infiltration, and ensure decades of reliable performance.

Nusite Group has spent over 30 years protecting commercial properties across the GTA through comprehensive waterproofing solutions. Our experience with expansion joint waterproofing spans every building type and application, from parking structures to high-rise towers, from industrial facilities to institutional buildings. We understand Toronto’s demanding climate and the specific challenges our local conditions present.

Our approach to expansion joint waterproofing begins with thorough assessment. We evaluate existing conditions, identify failure causes, and recommend solutions tailored to your building’s specific requirements. Whether addressing a single failed joint or implementing a comprehensive facility-wide renewal program, we bring the technical expertise and proven installation practices that ensure reliable, long-lasting results.

Beyond expansion joints, Nusite Group provides the full spectrum of commercial waterproofing services Toronto property owners require. From blindside waterproofing for new construction to parking garage restoration, from elevator pit waterproofing to complete building envelope solutions, we deliver integrated protection for your entire facility. Our capabilities extend to concrete repair, foundation work, and commercial roofing, making us your single-source partner for comprehensive building envelope protection.

When you partner with Nusite Group, you benefit from our relationships with leading material manufacturers, our knowledge of Ontario Building Code requirements, and our commitment to quality workmanship. We’ve successfully completed projects across every municipality in the GTA, working with property owners, developers, and facility managers who demand contractors capable of delivering results on schedule and within budget.

Don’t wait for minor expansion joint problems to become major structural issues. Contact Nusite Group waterproofing contractors to schedule a comprehensive expansion joint assessment for your Toronto-area commercial property. Let our experienced team protect your investment with proven waterproofing solutions designed for our local climate and built to last.
