Choosing the Right Roof Waterproofing Systems for Your Commercial Building

Commercial roof waterproofing represents one of the most critical building envelope decisions property managers and facility directors make during new construction or roof replacement projects. Unlike residential roofing where aesthetic preferences often drive selection, commercial roof waterproofing systems must balance performance requirements, lifecycle costs, building use constraints, and long-term maintenance strategies across buildings spanning tens of thousands to millions of square feet.

For property managers, facility directors, and general contractors responsible for office buildings, institutional campuses, industrial facilities, and multi-tenant commercial properties across the Greater Toronto Area, selecting appropriate roof waterproofing systems directly impacts operational budgets, tenant satisfaction, and asset value over 20 to 40 year service life horizons.

Understanding Commercial Roof Waterproofing System Categories

Commercial roof waterproofing systems fall into several broad categories, each with distinct performance characteristics, installation requirements, and cost profiles. Understanding these fundamental differences provides the foundation for informed system selection.

Single-Ply Membrane Systems

Single-ply membranes dominate contemporary commercial roofing due to proven performance, competitive pricing, and straightforward installation. These factory-manufactured sheets arrive on-site ready for installation, offering consistent quality and predictable performance. The two primary single-ply technologies—thermoplastic and thermoset membranes—provide different property profiles suited to varying applications.

Thermoplastic membranes including TPO (thermoplastic polyolefin) and PVC (polyvinyl chloride) use heat welding to create seams, producing monolithic roof assemblies. These systems offer excellent UV resistance, reflective white surfaces reducing cooling loads, and strong resistance to punctures and tears. Chemical resistance varies by formulation, with PVC providing superior performance in environments with grease, oils, or industrial exposures. Installation proceeds rapidly on large commercial buildings, and repairs can be heat-welded matching original installation quality.

Thermoset membranes, primarily EPDM (ethylene propylene diene monomer) rubber, cure during manufacturing and rely on adhesives or mechanical fastening rather than heat welding. EPDM provides exceptional flexibility maintaining elasticity across wide temperature ranges, proven long-term durability with installations exceeding 40 years, lower material costs than thermoplastic systems, and excellent resistance to ozone and UV exposure. However, seam quality depends heavily on proper adhesive application and surface preparation, making installation quality critical to long-term performance.

Modified Bitumen Systems

Modified bitumen roofing evolved from traditional built-up roofing, incorporating polymer modifiers that enhance flexibility, durability, and temperature performance. These systems use rolls of asphalt-based membrane reinforced with polyester or fiberglass and modified with atactic polypropylene (APP) or styrene-butadiene-styrene (SBS) polymers.

APP-modified systems are typically torch-applied, where controlled flame application melts the membrane underside creating adhesion to the substrate. This installation method provides excellent bond strength and visible quality control as installers observe proper melt patterns. SBS-modified systems may be torch-applied, cold-applied with adhesives, or heat-welded depending on formulation. These membranes maintain flexibility at low temperatures superior to APP systems, making them particularly suitable for Ontario’s climate.

Modified bitumen systems offer several advantages for commercial applications. Multi-ply assemblies provide redundancy through base sheets, ply sheets, and cap sheets creating layered waterproofing. Granulated cap sheet surfaces protect the membrane from UV degradation and physical damage. Self-healing properties allow minor punctures to seal through bitumen flow. The systems accommodate various substrate types and can be installed over existing roofing in many recover applications.

Built-Up Roofing (BUR) Systems

Traditional built-up roofing, while less common in new construction, remains relevant for specific applications and continues to perform on many existing commercial buildings. BUR systems consist of alternating layers of bitumen (asphalt or coal tar) and reinforcing felts, creating multi-ply waterproofing membranes with proven longevity.

The installation process involves applying hot asphalt or coal tar, embedding reinforcing felts creating plies, and repeating layers to achieve specified thickness—typically three to five plies. A flood coat of bitumen and aggregate surfacing provides UV protection and physical durability. This traditional system offers proven performance with installations lasting 30 to 40 years when properly maintained, redundancy through multiple plies, fire resistance particularly with gravel surfacing, and competitive lifecycle costs despite higher initial installation expenses.

However, BUR installation requires specialized crews and equipment for hot asphalt application. The process is weather-dependent and may generate odors requiring coordination with occupied buildings. Weight considerations become significant as multiple plies with gravel surfacing create substantial dead loads requiring structural capacity verification.

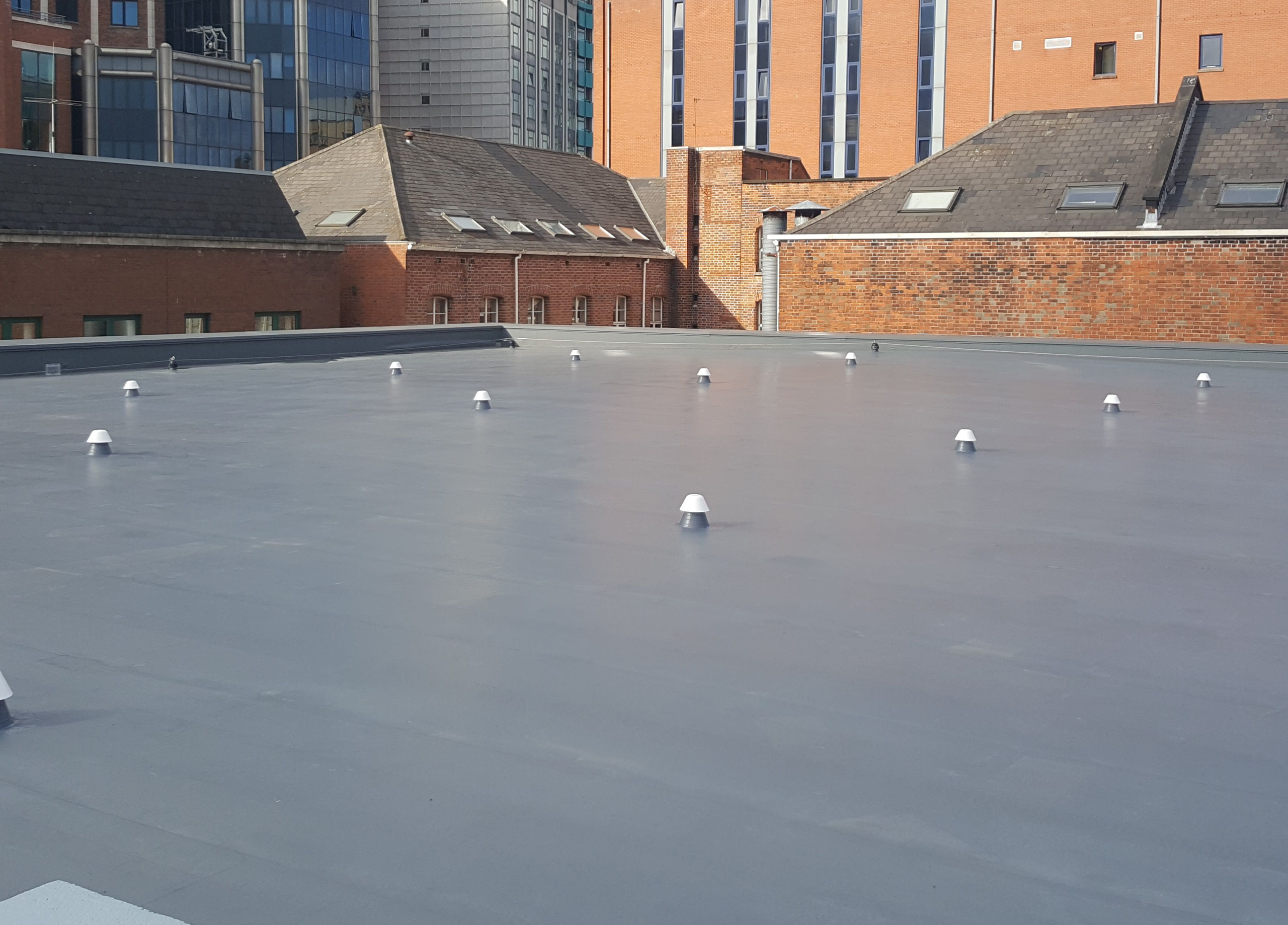

Fluid-Applied Membrane Systems

Fluid-applied waterproofing membranes offer seamless roofing solutions particularly valuable for complex roof geometries, extensive penetrations, or unusual substrate conditions. These liquid coatings cure in place, creating monolithic membranes conforming to any roof configuration.

Available chemistries include polyurethane, silicone, acrylic, and polyurea formulations, each offering distinct performance profiles. Silicone systems provide excellent UV resistance and ponding water tolerance, maintaining flexibility without degradation. Polyurethane systems offer superior durability and physical properties with good chemical resistance. The seamless installation eliminates vulnerability at seams characteristic of sheet membrane systems. These coatings can be applied over various existing roof systems as restoration or maintenance coatings, extending roof life at a fraction of replacement costs.

Application thickness control, proper substrate preparation, and weather conditions during installation significantly affect performance. Multiple coats achieve specified dry film thickness, and reinforcement fabrics at critical areas provide additional strength. For complex commercial roofs with numerous penetrations, equipment installations, or irregular geometries, fluid-applied systems often provide the most practical waterproofing solution.

System Selection Based on Building Type and Use

Different commercial building types present varying roof waterproofing requirements based on operational characteristics, occupancy patterns, and building system integration.

Office Buildings and Institutional Facilities

Office buildings and institutional facilities including universities, hospitals, and government buildings typically feature occupied spaces directly below roof assemblies. These applications prioritize systems with proven reliability, minimal maintenance disruption, and long service life justifying higher initial investment.

Single-ply thermoplastic membranes dominate this market segment offering clean installation with minimal odor affecting occupants, white reflective surfaces reducing cooling loads in air-conditioned buildings, long warranties from major manufacturers, and straightforward maintenance and repair protocols. Modified bitumen SBS systems provide alternatives where budget constraints exist or torch-applied installation is preferred, offering proven performance and competitive lifecycle costs.

Energy efficiency considerations often drive system selection for office and institutional buildings. White TPO or PVC membranes with high solar reflectance reduce heat island effects and qualify for LEED credits. Increased insulation thicknesses meeting or exceeding building code requirements provide operational cost savings through reduced HVAC energy consumption.

Industrial and Manufacturing Facilities

Industrial and manufacturing facilities present unique roofing challenges including large uninterrupted roof areas, potential chemical exposures from process operations, and cost sensitivity balancing performance against budget constraints. These buildings often feature steel deck roof structures with minimal structural capacity for heavy roofing systems.

Key Industrial Roofing Considerations:

• Lightweight systems minimizing structural loading on steel deck construction
• Chemical resistance where roof exposure to process emissions or equipment exhaust occurs
• Cost-effective solutions appropriate to building value and operational budget
• Rapid installation minimizing production disruption during replacement projects

EPDM single-ply systems frequently suit industrial applications through low material costs, proven durability, and lightweight assembly. Modified bitumen systems offer competitive alternatives with self-healing properties valuable where minor roof damage from equipment or maintenance activities might occur. For facilities with aggressive chemical exposures, PVC membranes provide superior chemical resistance protecting roofing investment.

Retail and Multi-Tenant Commercial Buildings

Retail centers and multi-tenant commercial properties require roofing systems balancing performance with aesthetic considerations visible from upper-floor tenants or surrounding properties. Tenant improvement construction, HVAC equipment installations, and ongoing building modifications create roof traffic and penetration demands exceeding typical office building conditions.

Roofing system selection for these properties emphasizes durability against foot traffic and construction activity, ease of modification accommodating tenant improvements and equipment installations, proven track record minimizing tenant complaints about leaks, and professional appearance from elevated viewpoints. TPO and PVC single-ply systems dominate retail and commercial applications through these balanced characteristics. Modified bitumen cap sheets with granulated surfaces provide attractive alternatives particularly for smaller projects or phased roof replacement programs.

Parking Structures and Podium Decks

Parking structure and podium deck roofing differs fundamentally from conventional building roofs by requiring waterproofing systems that accommodate vehicular or heavy pedestrian traffic while protecting occupied or parking spaces below. These applications demand specialized traffic deck membrane systems rather than conventional roofing products.

Traffic deck waterproofing systems use polyurethane, polyurea, or MMA (methyl methacrylate) membranes engineered specifically for vehicular traffic, chemical resistance to de-icing salts and automotive fluids, and flexibility accommodating structural deck movement and thermal cycling. Protected membrane assemblies with waterproofing beneath pavers, concrete, or landscaping provide alternatives for pedestrian plaza applications where traffic loads permit buried membrane configurations.

Climate and Environmental Performance Requirements

Ontario’s climate imposes specific performance requirements on commercial roof waterproofing systems that may differ from milder regions or more extreme northern climates.

Freeze-Thaw Cycling and Low-Temperature Flexibility

The GTA experiences 30 to 50 freeze-thaw cycles annually with winter temperatures reaching -20°C to -30°C during extreme events. Roof membranes must maintain flexibility preventing cracking when subjected to thermal contraction at these low temperatures. Single-ply EPDM and SBS-modified bitumen systems excel in cold weather performance, maintaining elasticity well below zero degrees.

Thermoplastic membranes including TPO require formulation attention ensuring adequate low-temperature flexibility. Quality TPO products perform reliably in Ontario’s climate, while economy formulations may become brittle during extreme cold events. Property managers should specify membranes with documented cold-temperature performance testing and proven track records in Canadian climate zones.

Wind Uplift Resistance

Commercial buildings in the GTA face wind uplift forces requiring properly designed membrane attachment resisting these loads without failure. Building height, roof area, perimeter conditions, and nearby building wake effects all influence design wind loads. Building code requirements mandate specific wind uplift ratings based on building characteristics and location.

Membrane Attachment Methods:

• Fully adhered systems providing maximum wind resistance through continuous adhesive bond
• Mechanically fastened systems using screws and plates at specified spacing
• Ballasted systems using gravel or pavers holding membranes in place (limited application where structural capacity permits)

Perimeter and corner zones experience wind loads significantly higher than field-of-roof areas, requiring enhanced attachment in these critical zones. General contractors managing commercial roof installations should verify that membrane attachment design meets wind uplift requirements specific to each building’s characteristics and location.

Snow Load and Ice Dam Management

Ontario Building Code snow load requirements drive insulation and structural design affecting roofing system selection. Adequate roof slope prevents excessive snow accumulation, while proper insulation and ventilation (where applicable) minimize ice dam formation at roof edges. Membrane systems must tolerate ponding water from snow melt without degradation, with silicone and certain modified bitumen formulations providing superior ponded water resistance.

Insulation performance in wet conditions becomes critical where roof leaks or condensation might occur. Closed-cell insulation materials including polyisocyanurate and extruded polystyrene maintain thermal performance when wet, while open-cell or fibrous insulations lose R-value significantly if moisture infiltration occurs. For commercial buildings where roof leaks might go undetected, closed-cell insulation provides performance insurance.

Maintenance Requirements and Long-Term Performance

All commercial roof waterproofing systems require ongoing maintenance achieving design service life and protecting building envelope integrity. Maintenance program rigor varies by system type but should include regular inspections, preventative maintenance, and prompt repair of identified defects.

Annual roof inspections should document membrane condition including surface wear, punctures, or tears; seam integrity for single-ply and modified bitumen systems; flashing condition at perimeters, penetrations, and roof equipment; drainage system functionality with clean drains and scuppers; and equipment support conditions where HVAC units or other roof-mounted systems interface with waterproofing. These inspections identify minor defects requiring repair before they propagate into major failures causing interior water damage.

Semi-annual inspections—spring and fall—provide optimal monitoring timing. Spring inspections following winter weather identify ice damage, snow plow impacts, or freeze-thaw deterioration. Fall inspections before winter ensure drainage systems are clear and roof condition can withstand upcoming freeze-thaw cycles.

Preventative maintenance extends roof service life significantly. Cleaning drains and gutters prevents ponding water accelerating membrane deterioration. Removing debris prevents drain blockages and reduces organic material decomposition creating acidic conditions harmful to certain membranes. Re-securing loose flashings or membrane edges prevents wind-driven rain infiltration. Minor repairs using compatible materials arrest deterioration preventing small defects from becoming large-scale failures.

Different membrane systems have varying maintenance requirements. Single-ply membranes require seam inspections with periodic seam testing or re-welding of suspect areas. Modified bitumen granulated surfaces need monitoring for granule loss with recoating when substrate exposure occurs. Built-up roofing gravel surfacing requires replenishment maintaining UV protection and physical durability. Fluid-applied coatings may need recoating every 10 to 15 years maintaining waterproofing integrity.

Property managers implementing systematic roof maintenance programs achieve roof service life at or exceeding design expectations. Deferred maintenance invariably results in premature roof failure, emergency replacements at premium costs, interior damage to building finishes and systems, and tenant disruption far exceeding preventative maintenance investment.

Nusite Group’s Commercial Roofing Expertise

With over 30 years of commercial roofing and waterproofing experience, Nusite Group has delivered roof systems on institutional, commercial, industrial, and multi-tenant properties throughout the GTA and Southern Ontario. Our installations protect building assets, maintain operational continuity, and provide long-term waterproofing performance across diverse building types and exposure conditions.

We provide comprehensive commercial roofing solutions including single-ply membrane systems (TPO, PVC, EPDM), modified bitumen roofing (APP and SBS systems), built-up roofing assemblies, fluid-applied membrane systems, roof restoration and coating applications, and emergency roof repairs. Our technical approach matches system selection to building characteristics, operational requirements, budget parameters, and lifecycle cost objectives ensuring optimal performance for each application.

Our project teams execute commercial roofing in operational buildings, implementing phasing strategies maintaining tenant operations, coordinating with facility management minimizing business disruption, and providing safety protocols for occupied environments. We work with general contractors, building owners, property managers, and facility directors delivering roofing solutions that balance performance requirements with project constraints.

Quality control protocols include manufacturer certification for installers, third-party inspection services when specified, comprehensive testing verifying system integrity, and detailed warranty documentation supporting long-term asset management. Our installations meet manufacturer specifications, building code requirements, and project-specific performance criteria.

Frequently Asked Questions

How do I choose between TPO, PVC, and EPDM for my commercial building?

Selection depends on building characteristics and priorities. TPO offers the best balance of cost, performance, and energy efficiency for most commercial applications, making it the dominant choice for office buildings, retail centers, and institutional facilities. PVC provides superior chemical resistance and proven long-term durability, justifying premium costs for buildings with chemical exposures or where maximum service life is priority. EPDM delivers competitive costs with excellent cold-weather performance, suiting budget-conscious projects, industrial facilities, or applications where energy efficiency through reflectivity is less critical. Property managers should evaluate lifecycle costs including energy savings from reflective membranes rather than focusing solely on initial installation costs. Nusite Group provides system recommendations based on comprehensive evaluation of building requirements, operational priorities, and budget parameters.

What roof waterproofing system offers the longest service life?

Built-up roofing systems with gravel surfacing historically provide the longest service life, with installations commonly exceeding 30 to 40 years when properly maintained. The multi-ply construction offers redundancy, and aggregate surfacing protects the membrane from UV and physical damage. However, high initial costs and installation complexity limit BUR to specific applications. Among contemporary systems, PVC single-ply membranes demonstrate the longest proven track record with installations approaching 40 years in service. Quality TPO and EPDM systems reliably provide 25 to 30 years of service. Modified bitumen systems typically deliver 20 to 25 years. Service life expectations depend critically on installation quality, proper system design, and ongoing maintenance. Well-maintained roofing systems of any type significantly outlast poorly maintained premium systems.

Can commercial roof waterproofing systems be installed year-round in Ontario?

Installation feasibility varies by system type and weather conditions. Single-ply membranes can be installed during mild winter periods when temperatures remain above 5°C to 10°C depending on manufacturer specifications and adhesive requirements. Modified bitumen torch-applied systems have greater temperature flexibility with installation possible near freezing when proper techniques are employed. Cold-applied adhesive systems require warmer temperatures typically above 10°C to 15°C for proper curing. Built-up roofing installation essentially ceases during winter due to hot asphalt application requirements. Ideal installation windows are spring through fall when consistent temperatures and lower precipitation probability provide optimal conditions. Emergency repairs can be executed year-round using specialized materials and techniques. Property managers planning roof replacement should schedule projects during favorable weather seasons ensuring quality installation and manufacturer warranty compliance.
