Injection Waterproofing Materials: Polymer Gel vs. Polyurethane vs. Epoxy

Injection waterproofing is not a single technique but a family of methods that use different materials, each with distinct properties and purposes. Polymer rubber gel, polyurethane, and epoxy are among the most common injection materials, and they are not interchangeable — the right choice depends on the structure, the movement it undergoes, the water conditions, and what the repair is meant to achieve. Selecting the wrong material is a frequent cause of injection repairs that fail prematurely. Understanding how these materials differ helps commercial project teams, property managers, and consultants recognize why material selection matters and why it should follow from the conditions rather than habit.

This is relevant to anyone specifying or evaluating injection repairs on commercial and institutional structures across the GTA and Southern Ontario.

Why Injection Material Selection Matters

An injection material is not simply a filler pumped into a gap. It must perform a specific job under specific conditions — sealing against water, accommodating movement, bonding or expanding as required, and doing so in a damp or actively leaking environment. Different materials are engineered for different combinations of these demands. A material chosen for structural bonding behaves very differently from one chosen for flexible sealing, and applying the wrong one to a given condition produces a repair that may crack, debond, or fail to seal. Because the material is injected into a location that is difficult or impossible to access again, getting the selection right the first time is essential.

Polyurethane Injection

Polyurethane is one of the most widely used injection materials for water leak repair. Polyurethane resins react with water and cure to seal cracks, joints, and voids, and different formulations behave differently: some expand significantly on contact with water to fill and seal a void, while others cure to a more flexible or more rigid state depending on the product.

Where it applies. Polyurethane injection is commonly used to stop active water leakage at cracks, cold joints, and penetrations, including in wet conditions. Water-reactive expanding formulations are well suited to sealing actively leaking cracks where the material’s expansion helps fill the void and stop the flow. The specific formulation must be matched to the condition, since expansion behaviour, flexibility, and cure characteristics vary considerably across products.

Epoxy Injection

Epoxy injection serves a fundamentally different purpose from most water-sealing injection. Epoxy resins are high-strength, rigid materials that bond to concrete and are used to structurally re-bond cracks — restoring the concrete’s structural continuity across the crack rather than simply sealing it against water.

Where it applies. Epoxy injection is appropriate where the objective is structural repair of cracked concrete, restoring load transfer across a crack in a sound, dry, and stable condition. Because cured epoxy is rigid, it is not suited to cracks or joints that continue to move — a rigid repair in a moving crack will simply crack again adjacent to the repair. Epoxy is therefore a structural tool first, and its use is governed by whether the crack is dormant and whether structural re-bonding is the goal.

Polymer Rubber Gel Injection

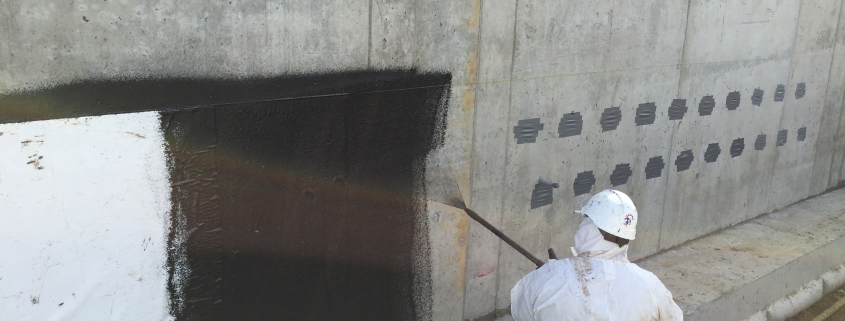

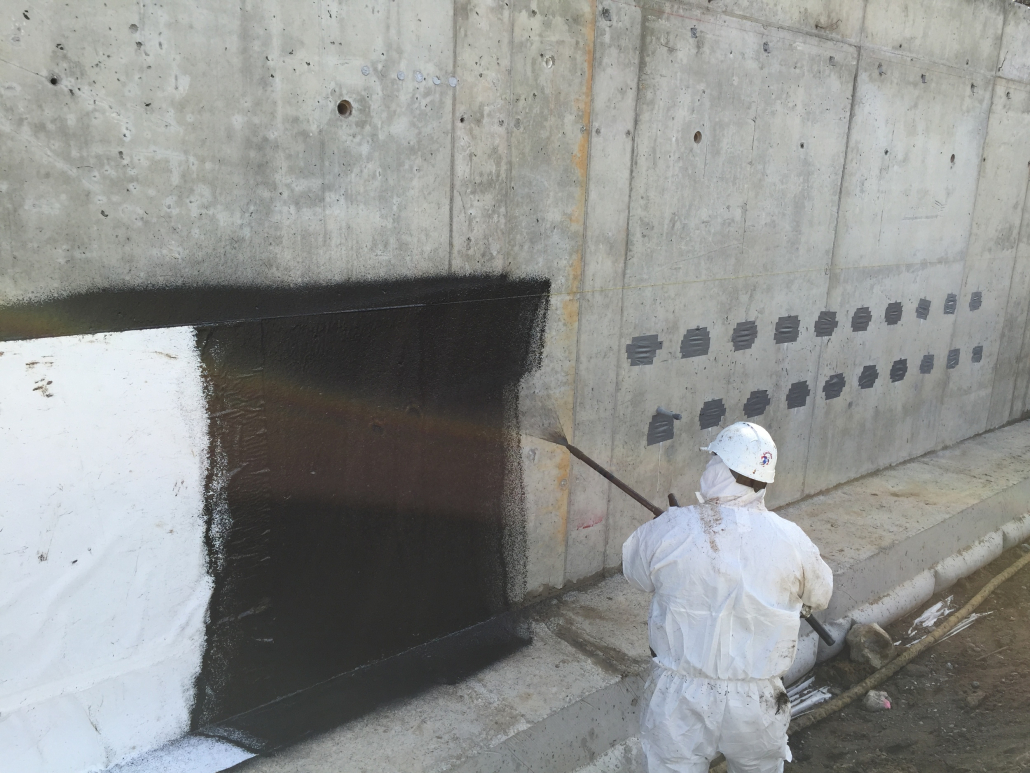

Polymer rubber gel represents another distinct category, engineered specifically for restoring waterproofing rather than sealing an individual crack or structurally bonding concrete. GTI-1000, for example, is a single-component injectable polymer rubber gel manufactured for repairing water leaks and restoring damaged waterproofing membrane systems. Its defining characteristic is that it remains highly flexible after installation, allowing it to accommodate vibration and continued structural movement rather than hardening into a rigid mass. It is also designed to perform in damp conditions and active water leakage.

Where it applies. What distinguishes polymer rubber gel in practice is that it can be injected through the structure toward the affected waterproofing layer behind or beneath it, restoring waterproofing continuity around the leak pathway rather than treating only the visible interior surface. This makes it particularly useful for restoring failed below-grade waterproofing membranes and for conditions involving ongoing movement, where a flexible material is essential. It is well suited to the difficult commercial waterproofing conditions — below-grade walls and slabs, joints, penetrations, plaza and podium assemblies — where direct exterior access to the original membrane is limited.

Polymer Gel Is Not Conventional Crack Injection

It is worth drawing out a distinction that is easy to blur. Conventional crack injection is often understood as filling or sealing an individual crack in concrete — the material goes into the crack to stop water passing through that specific defect. Polymer rubber gel injection can be used differently: rather than only filling the visible crack, it can be delivered through the structure to reach the affected waterproofing area beyond the interior surface.

This distinction matters because the location where water becomes visible inside a building is often not where it first penetrated the waterproofing. Water migrates along joints, interfaces, membranes, and cracks before appearing, so a repair that seals only the visible crack may miss the actual failure entirely. A material and method capable of reaching the compromised waterproofing behind the structure addresses the source rather than the symptom — which is a different objective from conventional crack sealing, even though both are delivered by injection.

How the Right Material Is Selected

Choosing among these materials is a technical decision driven by the conditions and the objective of the repair. The key factors include the goal of the repair — sealing against water, structurally re-bonding a crack, or restoring a failed waterproofing membrane; whether the crack or joint is dormant or continues to move, which governs whether a rigid or flexible material is appropriate; the water conditions, including whether the area is dry, damp, or actively leaking; the structure and substrate; and whether the failure is a discrete crack or a compromised waterproofing assembly behind the structure. No single material is best for all conditions — the right choice is the one matched to the specific situation.

This is why an experienced contractor assesses the structure, the water intrusion, and the movement conditions before selecting an injection material. The same visible leak might call for polyurethane, epoxy, polymer gel, or a different approach altogether, depending on what lies behind it.

Diagnosis Before Material

The common thread across all injection materials is that the repair depends first on correct diagnosis. Establishing where and why the waterproofing or concrete has failed — and how water is moving through the structure — determines both which material is appropriate and where it must be injected. The most suitable material, injected at the wrong location or chosen for the wrong condition, will not deliver a lasting repair. Assessment comes first; material selection follows from it.

Injection Waterproofing Expertise with Nusite Group

Nusite Group provides commercial injection waterproofing using the range of injection systems suited to different conditions, on commercial, institutional, and infrastructure projects across the GTA and Southern Ontario, with field experience since 1990. As a fully bonded specialty contractor, licensed across Ontario and insured to $10 million in liability coverage, we assess each condition and select the injection material and method matched to the structure, the movement, the water conditions, and the repair objective.

Request an assessment to determine the right injection approach for your structure.
